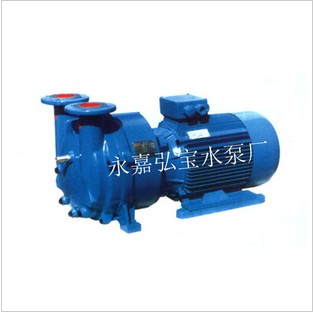

SKA式抽真空泵
|
型号 |
A |
B |
B1 |
R |
T |
H4 |
P2 |
M |
E |
S2 |
d/DIN |
|
2060 |
450 |
186 |
140 |
203 |
110 |
186 |
250 |
245.5 |
100 |
10 |
G1'' |
|
2061 |
475 |
186 |
140 |
223 |
110 |
186 |
250 |
286.5 |
100 |
10 |
G1'' |
|
2070 |
565 |
224 |
160 |
260 |
110 |
210 |
270 |
314 |
140 |
12 |
G11/2'' |
|
2071 |
590 |
224 |
190 |
290 |
110 |
222 |
300 |
344 |
140 |
12 |
G11/2'' |

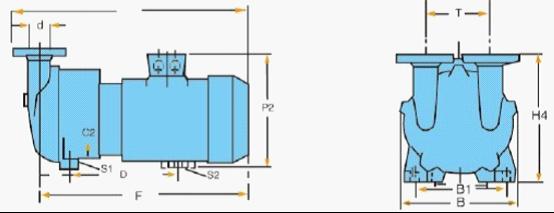

图（四）2BV- 5110/5111/5121/5131/5161水环真空泵外形尺寸
|
型号 |
A |
B |
B1 |
B2 |
K |
W |
T |
E |
F |
H4 |
P2 |
S1 |
S2 |
C1 |
C2 |
|
5110 |
674 |
325 |
255 |
190 |
350 |
180 |
340 |
93 |
567 |
361 |
330 |
12 |
12 |
15 |
26 |
|
5111 |
669 |
325 |
265 |
216 |
345 |
180 |
340 |
92 |
589 |
371 |
365 |
12 |
12 |
18 |
26 |
|
5121 |
772 |
347 |
265 |
216 |
430 |
200 |
382 |
136 |
681 |
385 |
365 |
12 |
12 |
18 |
26 |
|
5131 |
850 |
377 |
300 |
254 |
475 |
200 |
382 |
103 |
759 |
427 |
435 |
15 |
14 |
20 |
30 |
|
5161 |
1060 |
479 |
370 |
370 |
617.5 |
250 |
450 |
137.5 |
959.5 |
521 |
485 |
15 |
15 |
20 |
30 |
法兰尺寸表：
|
型号 |
d1 |
d2 |
d3 |
d4 |
d5 |
|
5110 |
19 |
160 |
123 |
97 |
52 |
|
5111 |
19 |
160 |
123 |
97 |
52 |
|
5121 |
19 |
182 |
142 |
113 |
66.5 |
|
5131 |
19 |
182 |
142 |
113 |
66.5 |
|
5161 |
22 |
200 |
156 |
130 |
80 |

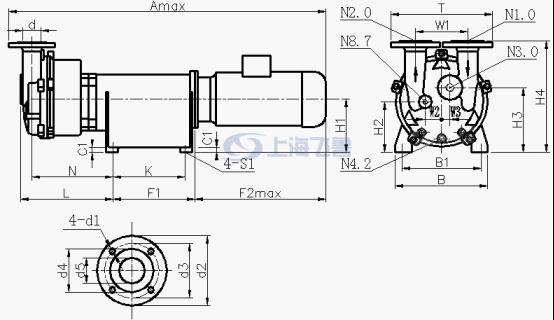

图（五）2BV-6110/6111/6121/6161/水环真空泵外形尺寸
|
型号 |
Amax |
B |
B1 |
C1 |
F1 |
F2max |
H1 |
H2 |
H3 |
H4 |
K |
L |
N |
W1 |
|
|
2BV6110 |
1190 |
325 |
255 |
26 |
291 |
450 |
160 |
173 |
223 |
381 |
250 |
319 |
281 |
180 |
|
|
2BV6111 |
1237 |
325 |
279 |
26 |
360 |
470 |
180 |
196 |
242 |
401 |
320 |
365 |
327 |
180 |
|
|
2BV6121 |
1368 |
347 |
279 |
26 |
360 |
575 |
180 |
197 |
247 |
415 |
320 |
384 |
342 |
200 |
|
|
2BV6131 |
1495 |
377 |
320 |
26 |
461 |
585 |
215 |
234 |
287 |
467 |
414 |
405 |
357 |
200 |
|
|
2BV6161 |
1625 |
479 |
320 |
26 |
461 |
640 |
215 |
230 |
310 |
526 |
414 |
480 |
416 |
250 |
|
|
型号 |
W2 |
W3 |
S1 |
T |
d1 |
d2 |
d3 |
d4 |
d5 |
d |
N3.0 |
N4.2 |
N8.7 |
|
|
|
2BV6110 |
52 |
27 |
φ13 |
340 |
19 |
160 |
123 |
97 |
52 |
DN50 |
G3/4" |
G3/8" |
G3/8" |
|
|
|
2BV6111 |
52 |
27 |
φ13 |
340 |
19 |
160 |
123 |
97 |
52 |
DN50 |
G3/4" |
G3/8" |
G3/8" |
|
|
|
2BV6121 |
57 |
29 |
φ13 |
381.5 |
19 |
182 |
142 |
113 |
66.5 |
DN65 |
G3/4" |
G3/8" |
G3/8" |
|
|
|
2BV6131 |
57 |
29 |
φ15 |
381.5 |
19 |
182 |
142 |
113 |
66.5 |
DN65 |
G3/4" |
G3/8" |
G3/8" |
|
|
|
2BV6161 |
81 |
41 |
φ15 |
450 |
22 |
200 |
156 |
130 |
80 |
DN80 |
G3/4" |
G3/8" |
G3/8" |
|
